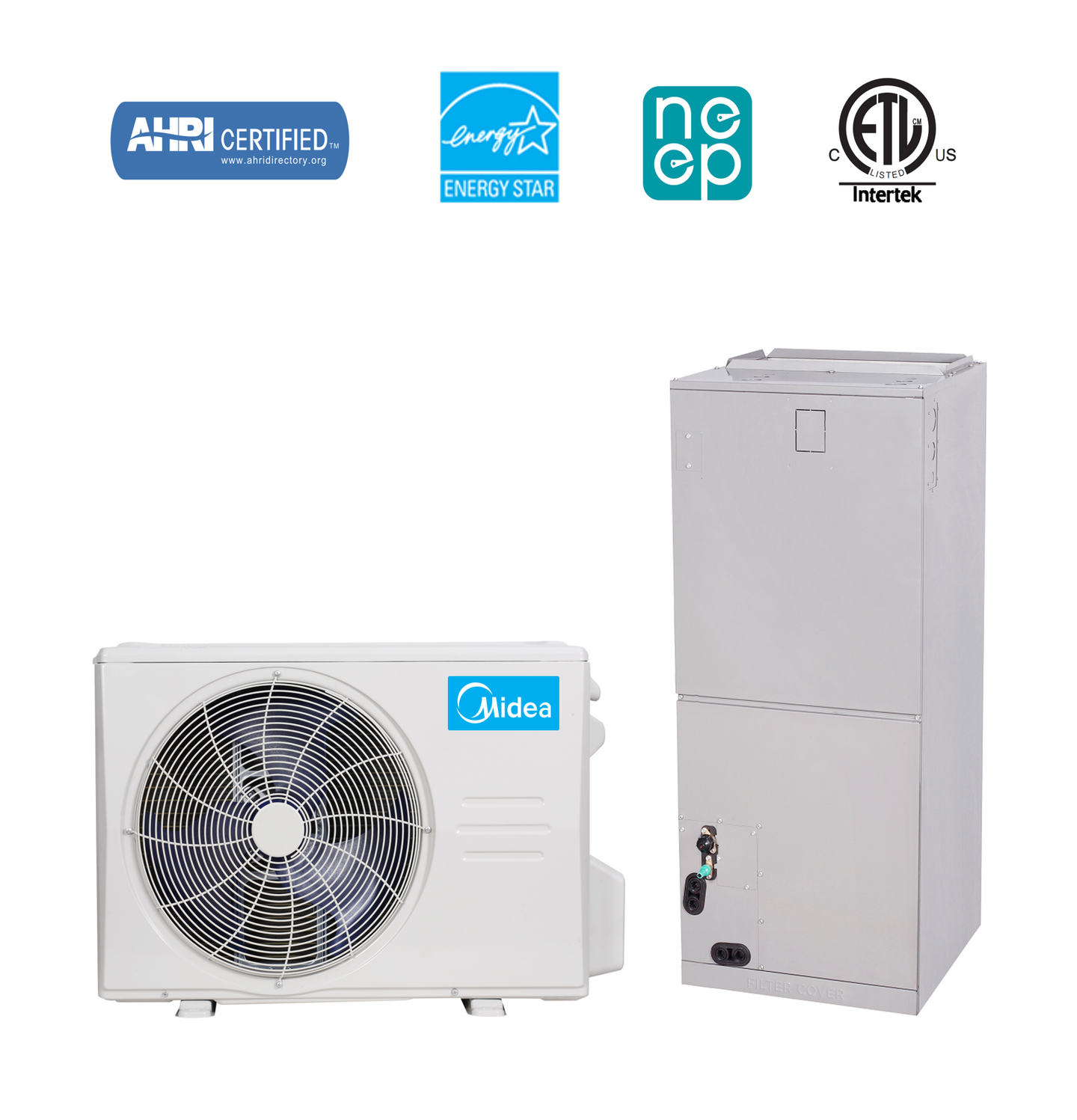

AHU Current Loop Hyper Heat
MACHU + MO1HS
Up to 18.7 SEER2
Up to 10.0 HSPF2-4
18-36 kBTU/h 208-230/1/60
FEATURES
Multi-position installation: horizontal(left or right), vertical( up or down)
Aluminum Coil
Constantly Air Flow system up to 0.80 In.W.G
1 inch R4.2 fiberglass free insulation reduces condensation and boosts efficiency(optional)
Optional Auxiliary heat kit up to 25kW
Easy Maintenance
High efficiency up to 18.7 SEER2, 12.0 EER2, 10.0 HSPF2
100% heat output at 5F*
Energy Star and Cold Climate Energy Star certified
Chassis heater and crankcase heater equipped as standard
Multiple control options available:
CONTROLS
○ Two way communication wired controller:120N(X6)
○ Two way communication wired controller with built-in WiFi:120N(X6W)
○ Wireless remote controller
○ Third-Party 24V Thermostat*
Midea Mini Split R454B
Single Zone Mini-Split System
Hyper Heat
